DPC.micro Gen4
Our most compact loop switching controller, now updated to Gen 4. Featuring three true bypass loops in a standard 125B enclosure, the DPC.micro is your go-to companion for compact loop switching.
The DPC.micro Gen4 works as a standalone device, to switch three separate pedals or signal chains, or as a MIDI-controlled loop expander for your rig.
Each loop may be controlled using a MIDI CC message or program change message, and the DPC.micro Gen4 can store up to 120 preset combinations for instant recall over MIDI.

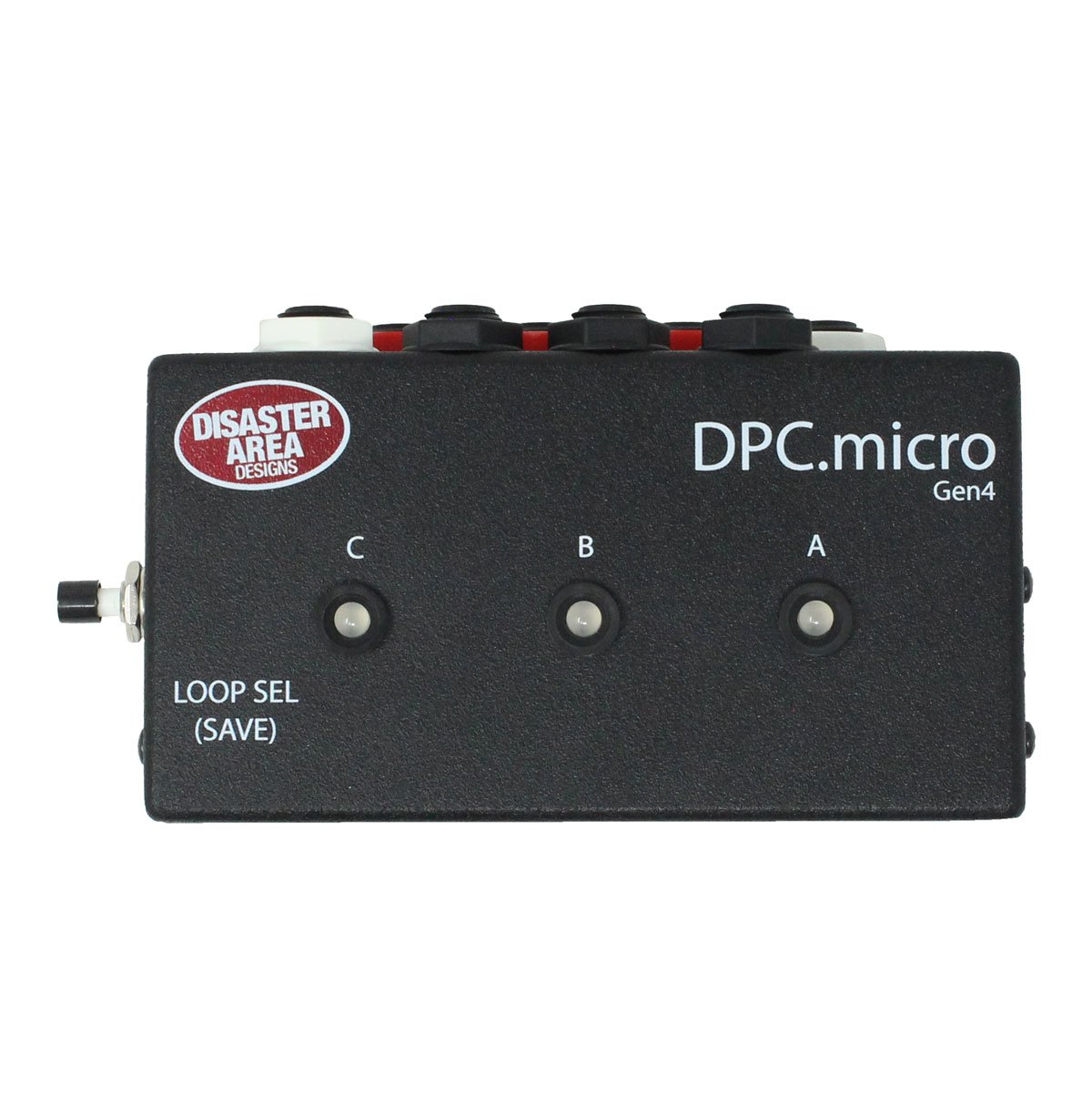

The DPC.micro Gen4 is also available in an under-board mount version with no footswitches. The under-board version features a programming pushbutton to select the loops and save presets, located on the side next to the MIDI input.
Please note that due to the compact size of the DPC.micro, we recommend slim-fitting patch cables such as our EVO Solderless cable kits. Most other solderless kits will also work, as will the SquarePlugs series of soldered conectors. We also offer a discounted bundle option with a custom EVO kit containing 12 plugs and 10ft. of cable, ideal for wiring up three pedals to your DPC.micro!
Our most compact loop switching controller, now updated to Gen 4. Featuring three true bypass loops in a standard 125B enclosure, the DPC.micro is your go-to companion for compact loop switching.
The DPC.micro Gen4 works as a standalone device, to switch three separate pedals or signal chains, or as a MIDI-controlled loop expander for your rig.
Each loop may be controlled using a MIDI CC message or program change message, and the DPC.micro Gen4 can store up to 120 preset combinations for instant recall over MIDI.
The DPC.micro Gen4 is also available in an under-board mount version with no footswitches. The under-board version features a programming pushbutton to select the loops and save presets, located on the side next to the MIDI input.
Please note that due to the compact size of the DPC.micro, we recommend slim-fitting patch cables such as our EVO Solderless cable kits. Most other solderless kits will also work, as will the SquarePlugs series of soldered conectors. We also offer a discounted bundle option with a custom EVO kit containing 12 plugs and 10ft. of cable, ideal for wiring up three pedals to your DPC.micro!
Our most compact loop switching controller, now updated to Gen 4. Featuring three true bypass loops in a standard 125B enclosure, the DPC.micro is your go-to companion for compact loop switching.
The DPC.micro Gen4 works as a standalone device, to switch three separate pedals or signal chains, or as a MIDI-controlled loop expander for your rig.
Each loop may be controlled using a MIDI CC message or program change message, and the DPC.micro Gen4 can store up to 120 preset combinations for instant recall over MIDI.
The DPC.micro Gen4 is also available in an under-board mount version with no footswitches. The under-board version features a programming pushbutton to select the loops and save presets, located on the side next to the MIDI input.
Please note that due to the compact size of the DPC.micro, we recommend slim-fitting patch cables such as our EVO Solderless cable kits. Most other solderless kits will also work, as will the SquarePlugs series of soldered conectors. We also offer a discounted bundle option with a custom EVO kit containing 12 plugs and 10ft. of cable, ideal for wiring up three pedals to your DPC.micro!
Overview
Full MIDI implementation - activate loops with MIDI CC or PC messages
Each loop LED is configurable for color and brightness
Manual mode selects one loop at a time
Preset mode selects multiple loops at once
Gen4 version features 3 preset modes, for a total of 9 available presets
Gen4 version sends 1 MIDI program change per preset, suitable for controlling a single MIDI device
Optional pop-stopping function mutes audio to silence misbehaving pedals
No buffer or signal conditioning - works great with impedance-sensitive pedals like fuzz, wah, vibe, and more
Configurable as a one-into-three switcher, one output at a time
Configurable as a three-into-one switcher, one input at a time
Features
Three true-bypass effects loops using gold-contact relays
Adjustable muting relay for click / pop suppression or audio mute function
Standard 5-pin MIDI input and output to interface with other devices or controllers
Compact Size – 4.8″ x 2.6″ x 1.4″, same size as Boss, Chase Bliss, or Alexander pedals
Available with soft-touch footswitches or in a switchless version with programming button on the left side.
Multi-color LED indicators to show loop status or preset selection
USB type-C port connects to your DAW or mobile device for MIDI communication or firmware update.
Runs on standard 9V power, 100mA or less
May be powered via USB type-C port

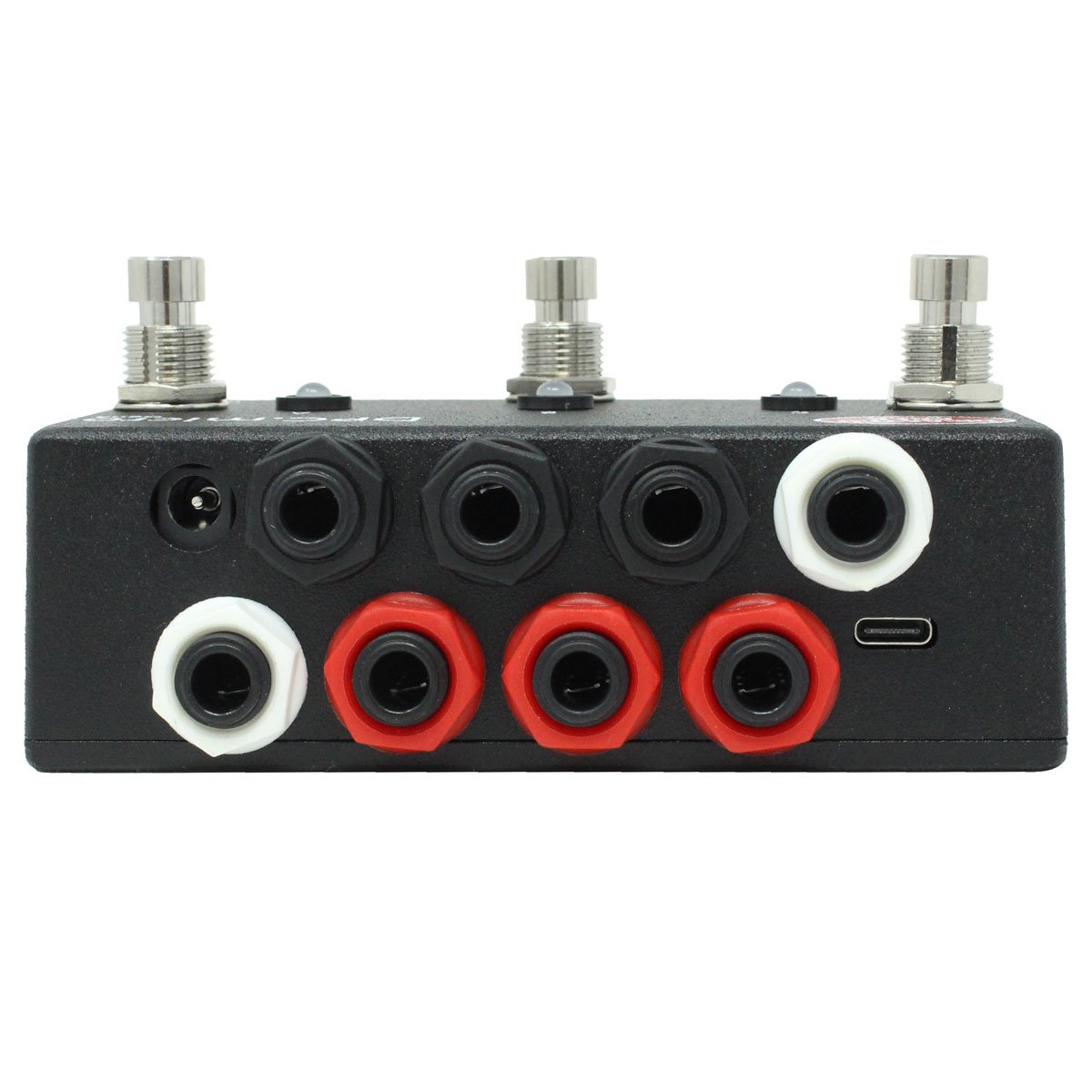

Gen3 version shown - Gen4 is identical except for USB Type-C port
If you already have a MIDI controller, the DPC.micro can act as a MIDI “slave” on any available channel. You can even connect up to four DPC.micro to create your own modular switching rig.
The DPC.micro is fully compatible with the Disaster Area Gen3 pedal controllers – connect it to add three effects loops under MIDI control.
Do you have a MIDI-capable multi-effects unit like the Line 6 Helix / Helix LT / HX Effects, or Fractal AX8? The DPC.micro can interface directly with your rig to add up to three independently controllable loops for your non-MIDI pedals! Combine your favorite analog distortion, compression, modulation, and delay pedals with the digital sounds from your other gear, without giving up your control and flexibility.
Integrates directly with the DMC.micro Gen4, receiving power and MIDI over a single USB cable (included.)
Works with our web-based configuration editor for full customization and bank management.
Videos
These videos cover the DPC-8EZ Gen3, but connecting the DPC.micro uses the same steps. Please contact us if you have any questions regarding your DPC.micro setup.
Specifications
Power: 9V DC, 100mA or less
3 status LEDs
3 bypass loops
User-selectable Insert Loop for 4-cable method or volume pedal
Soft-touch footswitches
Preset and live edit loop modes
Size: 4.7” x 2.6” x 1.5” (250mm x 66mm x 51mm)
5-pin MIDI input and output ports
USB port for firmware update or USB-MIDI
Controls one MIDI device
True-bypass signal chain with no buffering
